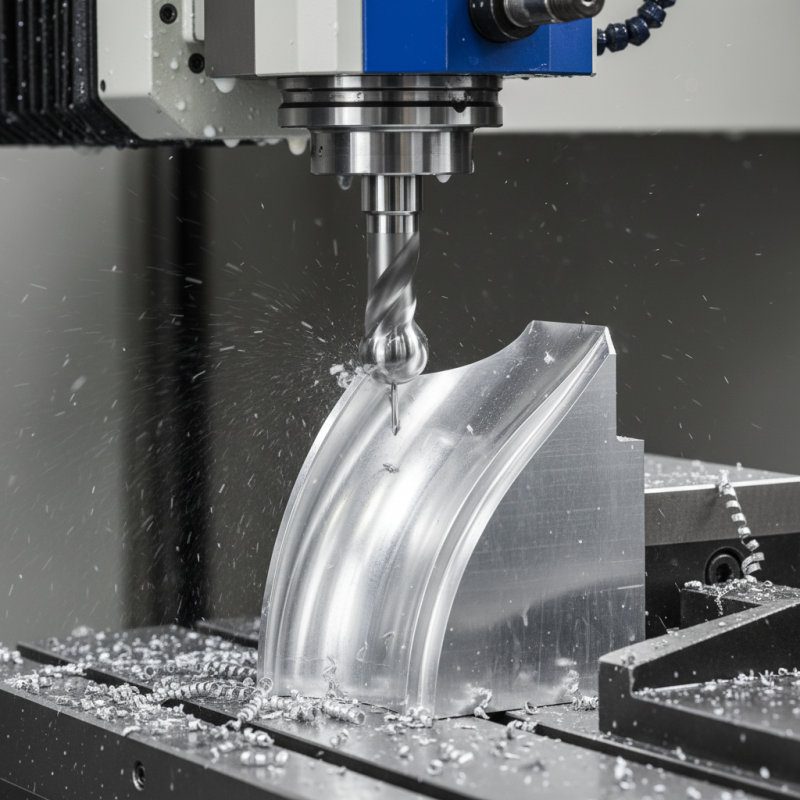

What is a Ball End Mill and How is it Used in Machining?
A Ball End Mill is a versatile tool widely used in machining. Its unique rounded design makes it ideal for producing curved surfaces and intricate shapes. In industries like aerospace and automotive, it plays a crucial role in creating complex parts.
The Ball End Mill allows for deeper cuts and efficient material removal. This capability can enhance the precision of a finished product. While it excels in specific applications, it may not be suitable for all materials or tasks. Users should be mindful of its limitations.
Understanding the right tools for specific jobs is vital. The choice of a Ball End Mill can determine the outcome of a project. Proper usage and technique are essential for achieving desired results. Reflecting on these aspects can lead to better machining practices.
What is a Ball End Mill and Its Design Features?
A ball end mill is a type of milling cutter. It features a hemispherical tip. This design allows for smooth contouring and complex shapes. It's commonly used in 3D machining tasks. The curved shape can create intricate details in various materials.
One key design aspect of a ball end mill is its flutes. Flutes are grooves that cut into materials and remove chips. They can vary in number and shape. More flutes can increase the tool's strength. However, this may also reduce chip clearance. The diameter of the ball end is crucial too. A smaller diameter allows for tighter curves, while larger diameters can cover more area.
The cutting angle is another consideration in design. A flatter profile may be less effective for certain applications. Users often have to reflect on the tool's capabilities. Experimentation can lead to surprisingly beneficial results. Each milling process is unique, and tweaking the design may yield better outcomes.
Common Materials Used for Ball End Mills and Their Properties
Ball end mills are crucial tools in machining. They are designed for creating rounded edges and complex shapes. The choice of materials for these tools significantly affects their performance. Common materials include high-speed steel (HSS), carbide, and cobalt. Each material exhibits different properties suitable for specific applications.
Carbide is the most popular choice for ball end mills. It offers high hardness and impressive wear resistance. According to industry reports, carbide tools can maintain their edge longevity, typically lasting 2 to 3 times longer than HSS tools. However, carbide tools can be more brittle. They require careful handling. Mishandling can lead to breakage during machining.
HSS is another option. It is less expensive and more flexible than carbide. HSS tools perform well in tough machining environments. However, they wear down more quickly. Industry studies indicate that HSS tools may only last half as long compared to their carbide counterparts. Cobalt, on the other hand, is a middle ground. It provides enhanced hardness and is less prone to wear than HSS. Nonetheless, it is not as durable as carbide. Choosing the right material often depends on the specific application requirements and budget constraints. Each option has its merits and limitations, which need careful consideration in machining contexts.
What is a Ball End Mill and How is it Used in Machining? - Common Materials Used for Ball End Mills and Their Properties
| Material | Hardness (HRC) | Typical Applications | Properties |
| High-Speed Steel (HSS) | 62-65 | General machining, soft materials | Tough, good wear resistance |
| Carbide | 70-80 | Hard materials, high speed machining | Very hard, excellent wear resistance |
| Cobalt Steel | 64-70 | High-strength applications | Good heat resistance, tough |
| Ceramic | 80+ | Hard and abrasive materials | Extremely hard, brittle |
| Coated Carbide | 70-80 | Variety of materials | Increased wear resistance, reduces friction |
Applications of Ball End Mills in CNC Machining Processes
Ball end mills are essential tools in CNC machining. They feature a rounded tip, allowing for complex shapes and contours. Their design makes it easier to create curved edges and 3D surfaces. This is particularly useful in industries like aerospace and automotive.
In CNC machining processes, ball end mills excel in finishing operations. They leave a smooth surface finish with fewer tool marks. When machining molds or dies, precision is key. Ball end mills help achieve that precision. They can also help in creating intricate details that flat end mills might struggle with. However, choosing the right feed rate is crucial. Too fast can lead to poor results, while too slow may waste time.
Despite their advantages, using ball end mills comes with challenges. Selecting the correct diameter and length impacts machining efficiency. Operators sometimes overlook the importance of proper tool path strategies. This can lead to suboptimal results, and even tool wear. Reflecting on these aspects can enhance machining outcomes significantly.
Applications of Ball End Mills in CNC Machining
Advantages of Using Ball End Mills in 3D Contouring and Surface Finishing
Ball end mills are versatile tools used in machining, especially effective for 3D contouring and surface finishing. Their rounded tips allow for smooth, curved cuts, making them ideal for complex shapes. When creating intricate designs, the geometry of the ball end mill can achieve a better finish than standard flat end mills. This is crucial in industries like aerospace and automotive, where precision is key.
Using ball end mills can enhance productivity. They cut through materials efficiently, reducing the time spent on contouring tasks. However, they also require careful consideration of feed rates and speeds to avoid wear. Miscalculations can lead to poor finishes, wasting both time and resources. Machinists need to constantly refine their techniques to harness the full potential of these tools.
Surface finishing is another area where ball end mills excel. The rounded edge allows for detailed work on complex geometries. However, achieving a uniform surface may take several passes, complicating the process. This method can be less forgiving than others, reminding machinists to be vigilant and adaptable. Balancing speed and detail is essential for successful results. The pursuit of perfection often leads to valuable insights and lessons in machining practices.
Industry Standard Sizes and Specifications for Ball End Mills
Ball end mills are essential tools in the machining process. They excel in creating rounded edges and contours on various materials. Industry standards dictate specific sizes and specifications for these tools.
Typically, ball end mills come in diameters ranging from 1/32 inch to 2 inches. The dimensions often correlate with the applications they serve. For instance, smaller sizes are ideal for detailed work. Larger diameters handle more extensive material removal.
Tips: Measure your project requirements carefully. Choosing the wrong size can lead to imprecise results. Always account for tool wear and tear, as this varies with material hardness. A damaged tool can ruin your workpiece.
Ball end mills also have varying flute configurations. These affect chip removal and cutting efficiency. Standard options include two or four flutes. More flutes provide smoother finishes, while fewer flutes enhance material removal. Experimentation is essential to determine what works best for your specific setup.
